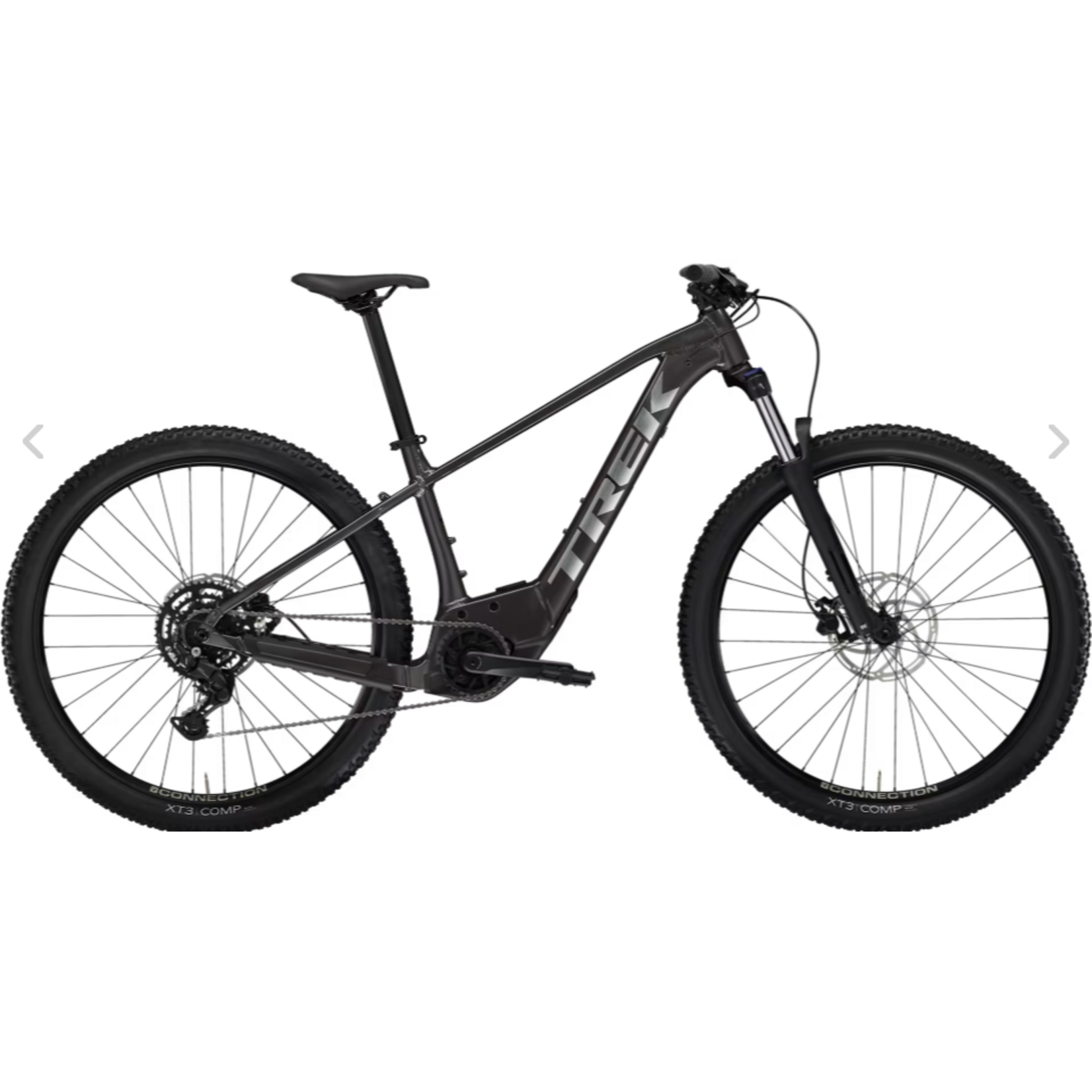

TREK Marlin+ 6 US L 29 Dnister Black

TREK Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.

*Frame: Size: XS

Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle

Size: S , M , L , XL

Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
*Fork: Size: XS
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel

Size: S , M , L , XL
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel

Hub front: Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear: Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve
*Tire: Size: XS , S

Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''

Size: M , L , XL

Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40''
Max tire size: Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer

Battery: Bosch CompactTube 400Wh
Charger: Bosch standard 2A, 110V, smart system
Computer: Bosch Purion 200
Motor: Bosch Active Line Plus

Shifter: Shimano U4000, 9 speed
Rear derailleur: Shimano CUES U4000
Crank: FSA CK-220, 165mm length
Chainring: FSA, 32T, steel
Cassette: Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain: Shimano LG500, 9/10/11 speed
Pedal: VP-536 nylon platform
Max chainring size: 1x: 36T, min 32T

Saddle: Bontrager Verse P3, steel rails
*Seatpost: Size: XS , S

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Size: M

Bontrager alloy, 31.6mm, 12mm offset, 360mm length

Size: L , XL

Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar: Size: XS , S

Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Size: M , L , XL

Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Bontrager XR Endurance Comp, lock-on
*Stem: Size: XS

Bontrager Comp, 31.8mm, 7 degree, 35mm length

Size: S , M , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset: Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom
Brake rotor: Tektro, centerlock, 203mm
Brake Set: Tektro HD-M275 hydraulic disc
Rotor size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight: M - 22.45 kg / 49.5 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
