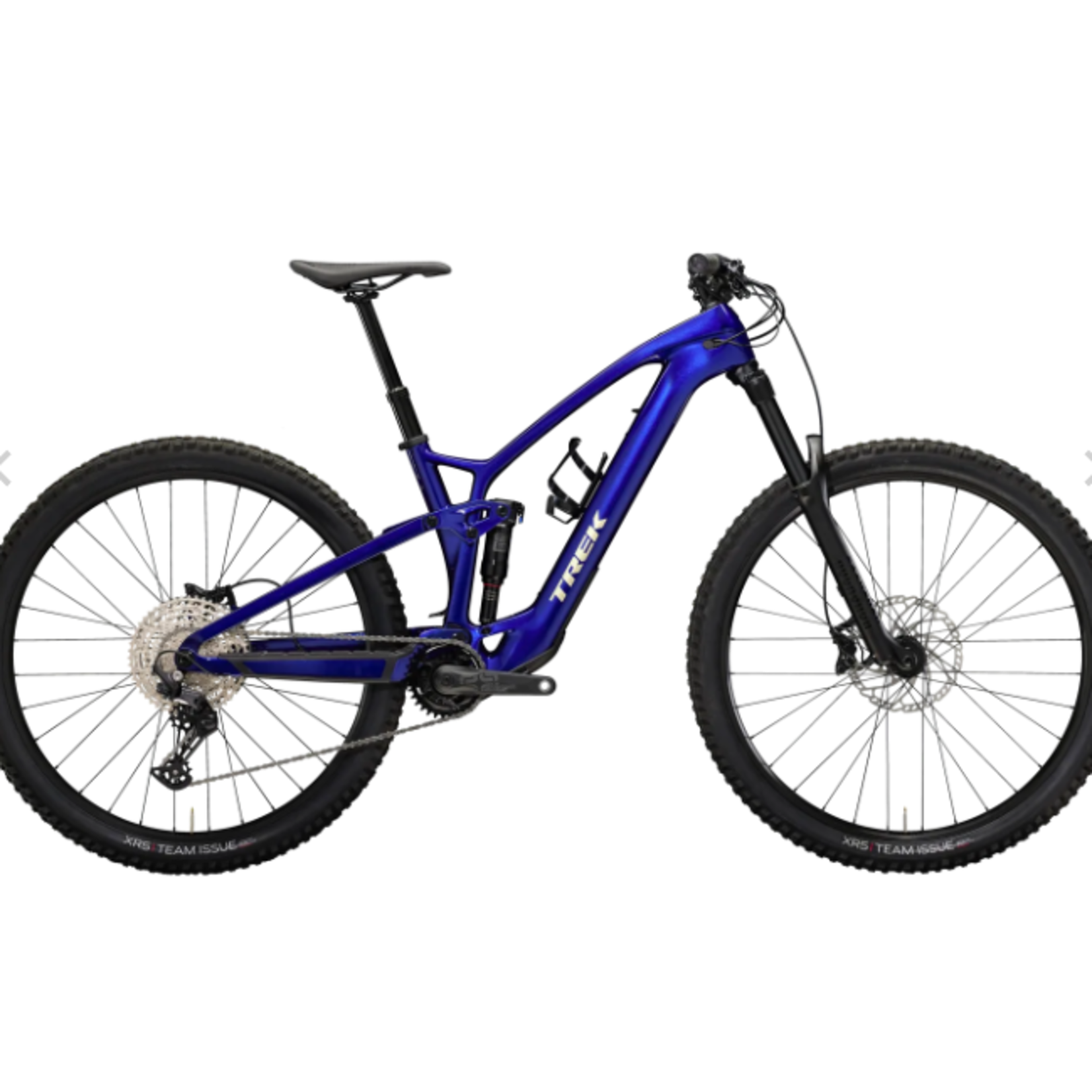

Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal assist and traditional bikes. It features a carbon frame and a compact motor that keeps the ride light, lively and quiet.
Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal assist and traditional bikes. It features a carbon frame and a compact motor that keeps the ride light, lively and quiet. Get the benefit of pedal assist on long climbs, and the playful feel of a traditional mountain bike on descents. It's built up with a 150mm RockShox Gold RL fork that makes quick work of rock gardens, and 140mm of plush RockShox Deluxe Select+ rear suspension for a smooth ride and small bump compliance
| Frame | OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel |
|---|---|
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |
| Shock | RockShox Deluxe Select+ RT, 205mm x 60mm |
| Max compatible fork travel | 160mm (575mm axle-to-crown) |
| Hub front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve |
| Tire | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50'' |
| Tire part | Bontrager TLR sealant, 6oz |
| Max tire size | Frame: 29x2.50", Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | E*thirteen E*spec Plus, 165mm length |
| Chainring | E*thirteen E*spec, 32T alloy ring, 55mm chainline |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Max chainring size | 1x: 34T, min 30T |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost | Size: S TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length |
| Size: M TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length |
|
| Size: L, XL TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length |
|
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper |
| Brake rotor | Shimano RT66, 6-bolt, 203mm |
| Rotor size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Battery | TQ 360Wh |
|---|---|
| Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
| Computer | TQ LED display with Bluetooth & ANT+ connectivity |
| Electronics | TQ 4A charger |
| Weight | M - 19.93 kg / 43.94 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
