Proven alloy performance

ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.

Balance and stability

Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control

Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.

HIGHLIGHTS

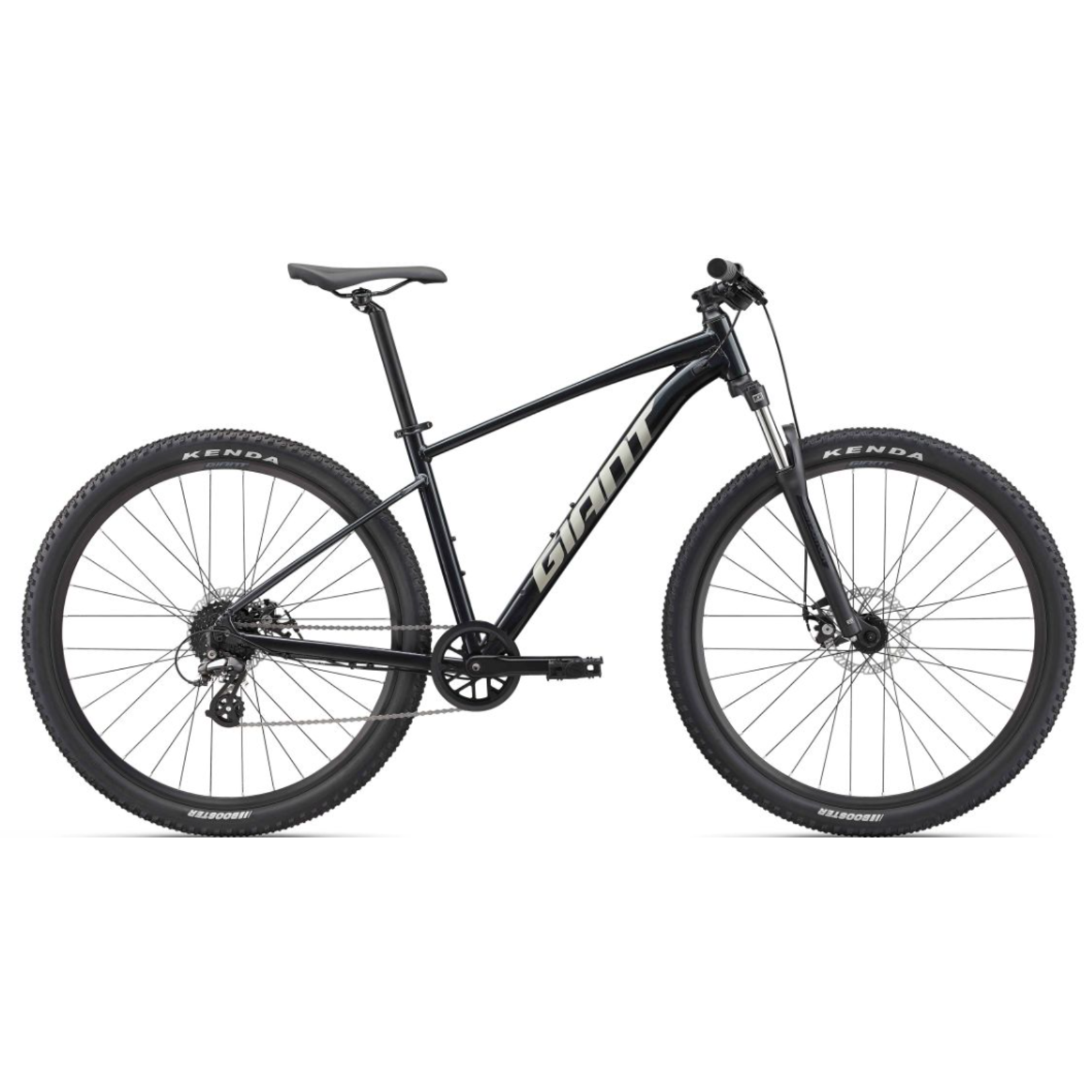

Built on a lightweight ALUXX aluminum frame that features classic hardtail design and the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC and trail riding. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.

• Sizes
  27.5: XS,S,M,L, 29: S,M,L,XL
• Colors
  Metallic Black, Metal
• Frame
  ALUXX-Grade Aluminum, disc
• Fork
  SR Suntour XCE, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29)
• Shock
  N/A
• Handlebar
  Giant Connect Trail, 31.8mm XS: 730mm (27.5) S: 780mm (27.5) / 780mm (29) M: 780mm (27.5) / 780mm (29) L: 780mm (27.5) / 780mm (29) XL: 780mm (29)
• Grips
  Giant Sole-O
• Stem
  Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (27.5) / 60mm (29) L: 70mm (27.5) / 70mm (29) XL: 80mm (29)
• Seatpost
  Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm (29) L: 375mm (27.5) / 375mm (29) XL: 375mm (29)
• Saddle
  Giant custom
• Pedals
  MTB caged
• Shifters
  microSHIFT SL-M718, 1x8
• Front Derailleur
  N/A
• Rear Derailleur
  microSHIFT RD-M619
• Brakes
  TKB-172, mechanical [F]160mm, [R]160mm rotors
• Brake Levers
  RS360A, mechanical
• Cassette
  microSHIFT CS-H083, 12-46
• Chain
  KMC 8.3
• Crankset
  ProWheel A10XPP, 30t (27.5) or 32t (29) XS: 165mm (27.5) S: 170mm (27.5) / 170mm (29) M: 170mm (27.5) / 175mm (29) L: 175mm (27.5) / 175mm (29) XL: 175mm (29)
• Bottom Bracket
  cartridge
• Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Hubs
  alloy, ball bearing
• Spokes
  stainless, 14g
• Tires
  Kenda Booster 27.5 or 29x2.2", wire bead
• Extras
  2.4" max tire size
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
