Rail 7 Deore/XT US L Mercury/Dnister Black

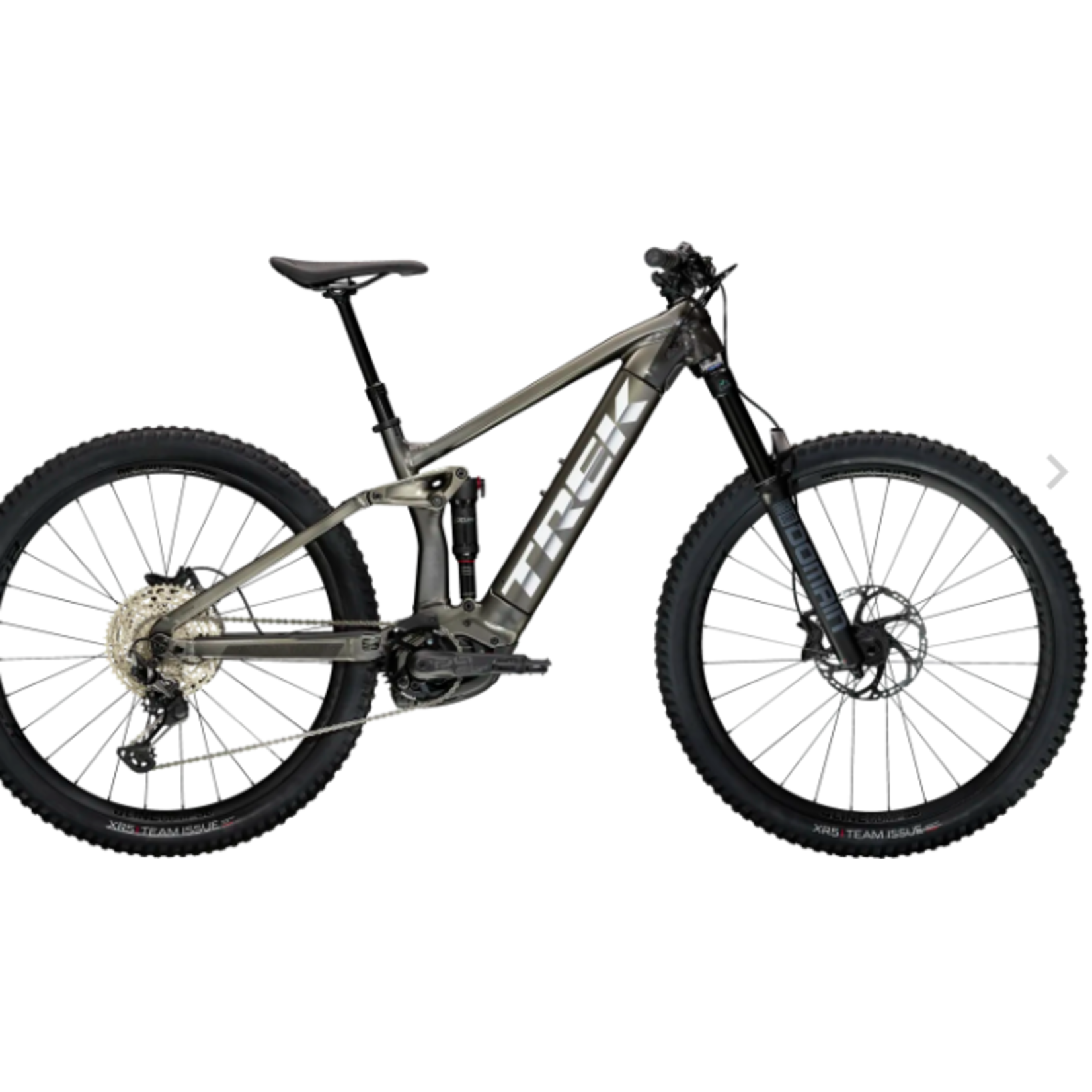

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analog trail bikes, an upgraded fork, drivetrain, battery, and more, plus a powerful Bosch drive system that's basically like having your own shuttle.

Frame	Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Fork	RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
Shock	RockShox Deluxe Select+, 230mm x 57.5mm
Max compatible fork travel	170mm (580mm axle-to-crown)

Wheels

Wheel front	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear	Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
Tire part	Bontrager TLR sealant, 6oz
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.60", Fork: See manufacturer

Drivetrain

Shifter	Shimano SLX M7100, 12 speed
Rear derailleur	Shimano XT M8100, long cage
Crank	Ethirteen Espec Plus, 165mm length
Chainring	E*thirteen, 34T, steel
Cassette	Shimano Deore M6100, 10-51, 12 speed
Chain	Shimano SLX M7100, 12 speed
Pedal	VP-536 nylon platform
Max chainring size	1x: 34T

Components

Saddle	Bontrager Arvada, steel rails, 138mm width
*Seatpost	Size: S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
*Seatpost	Size: M, L, XL TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
Handlebar	Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
Headset	Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake	Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Brake rotor	Shimano RT76, 6-bolt, 203mm

Accessories

Battery	Bosch PowerTube 625Wh
Charger	Bosch standard 4A, 100-240V
Motor	Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
Computer	Bosch Purion

Weight

Weight	M - 24.01 kg / 52.94 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
