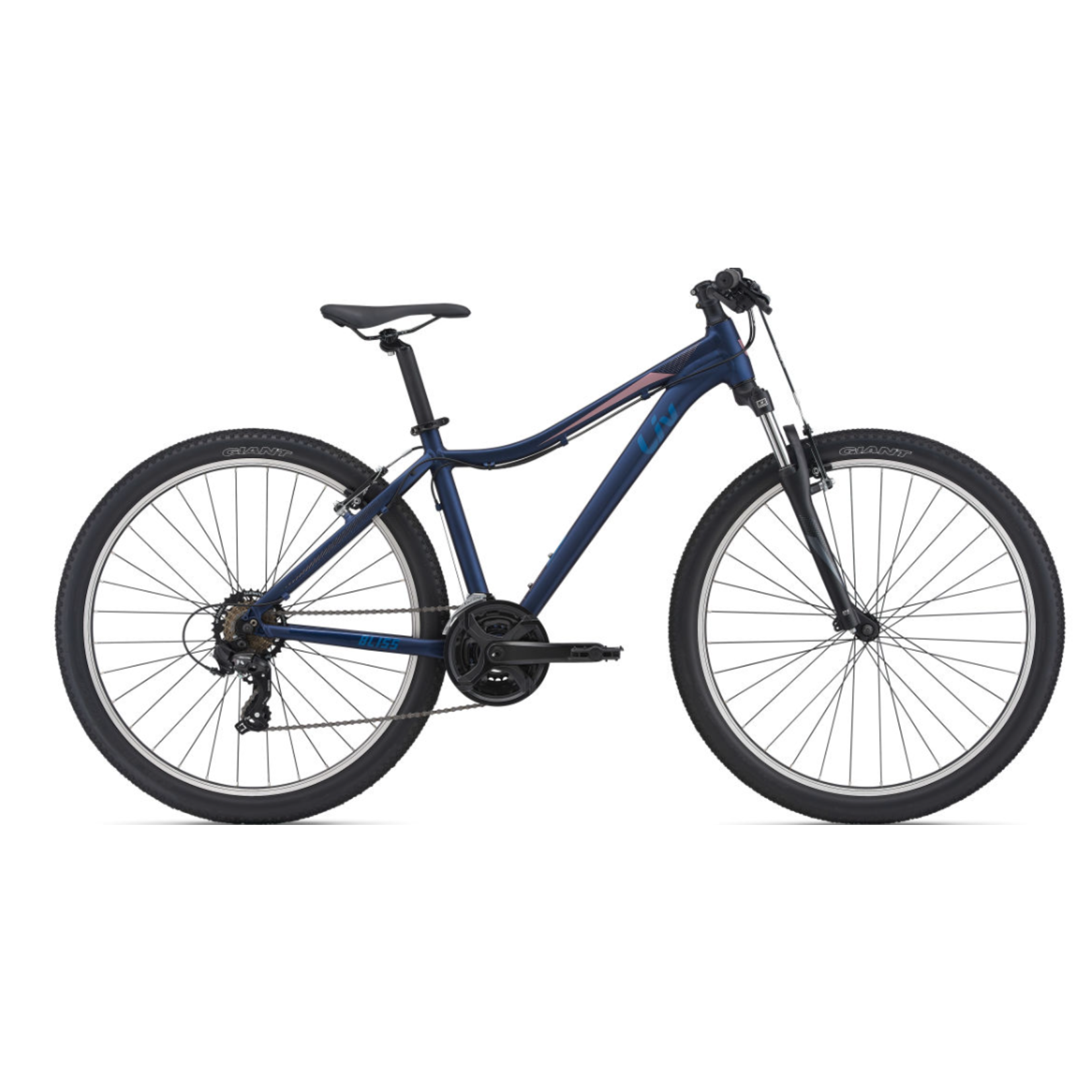

LIV Bliss 27.5 S Eclipse-GU

EQUIPPED TO HANDLE ANYTHING – EMBRACE PAVE ROADS, PATHS AND DIRT TRAIL WITH CONFIDENCE AND STYLE.

KEY PERFORMANCE FACTORS

Confidence Inspiring

Perfect as your first mountain bike, the ALUXX-Grade Aluminum frame is lightweight, capable and durable, with low standover for easy maneuverability.

Rider-optimized

Each frame is built and tuned specifically for the needs of riders that size, and fitted with one of two wheel options (26-inch or 27.5-inch) for a balanced experience.

Smooth Handling

A 75mm front suspension fork provides both capability and ease.

	XXS (26")	XS (26")	S (27.5")	M (27.5")
A	SEAT TUBE LENGTH (inch)	13	14.6	16.5	18.5
B	SEAT TUBE ANGLE	74.5°	74.0°	73.5°	73.0°
C	TOP TUBE LENGTH (inch)	21.1	21.7	22.4	23.4
D	HEAD TUBE LENGTH (inch)	3.7	4.3	4.3	5.3
E	HEAD TUBE ANGLE	69.5°	69.5°	69.5°	69.4°
F	FORK RAKE (inch)	1.6	1.6	1.7	1.7
G	TRAIL (inch)	3.2	3.2	3.3	3.3
H	WHEELBASE (inch)	40.8	41.3	42.4	43.2
I	CHAIN STAY LENGTH (inch)	16.7	16.7	17.1	17.1
J	BOTTOM BRACKET DROP (inch)	1.6	1.6	1.9	1.9
K	STACK (inch)	21.1	21.7	23.7	24.6
L	REACH (inch)	15.2	15.4	15.4	15.9
M	STAND OVER HEIGHT (inch)	23.9	24.8	26.6	28
N	HANDLEBAR WIDTH (inch)	23.6	23.6	24.4	25.2
O	STEM LENGTH (inch)	2.4	2.4	3	3.5
P	CRANK LENGTH (inch)	6.7	6.7	6.7	6.9
Q	WHEEL SIZE	26"	26"	27.5"	27.5"

Sizes

26": XXS, XS 27.5": S, M
Colors

Desert Sage/Trekking Green, Eclipse / Pale Mauve
Frame

ALUXX-Grade Aluminum
Fork

SR Suntour XCE 28, coil, preload XXS: 75mm travel (26) XS: 75mm travel (26) S: 75mm travel (27.5) M: 75mm travel (27.5)
Shock

N/A
Handlebar

Giant Sport, alloy, 25.4mm XXS: 600mm (26) XS: 600mm (26) S: 640mm (27.5) M: 640mm (27.5)
Grips

Giant Sole-O
Stem

Giant Sport, alloy, 15-degree XXS: 50mm (26) XS: 50mm (26) S: 60mm (26) / 60mm (27.5) M: 60mm (27.5)
Seatpost

Giant Sport, 300x 30.9mm
Saddle

Liv Custom
Pedals

platform
Shifters

MicoShift, Trigger, 3x7
Front Derailleur

Shimano Tourney
Rear Derailleur

MicoShift 26c, 7spd
Brakes

MTB linear pull
Brake Levers

Tektro 3 finger, Linear pull
Cassette

Shunfeng Freewheel, 14x28
Chain

KMC Z7
Crankset

ProWheel forged, 24/34/42 XXS: 165mm (26) XS: 165mm (26) S: 170mm (27.5) M: 170mm (27.5)
Bottom Bracket

cartridge
Rims

Giant alloy
Hubs

alloy, sealed bearing
Spokes

stainless, 14g
Tires

Giant Quickcross, 27.5x2.1 / 26x2.1
Extras

TK" max tire size
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
