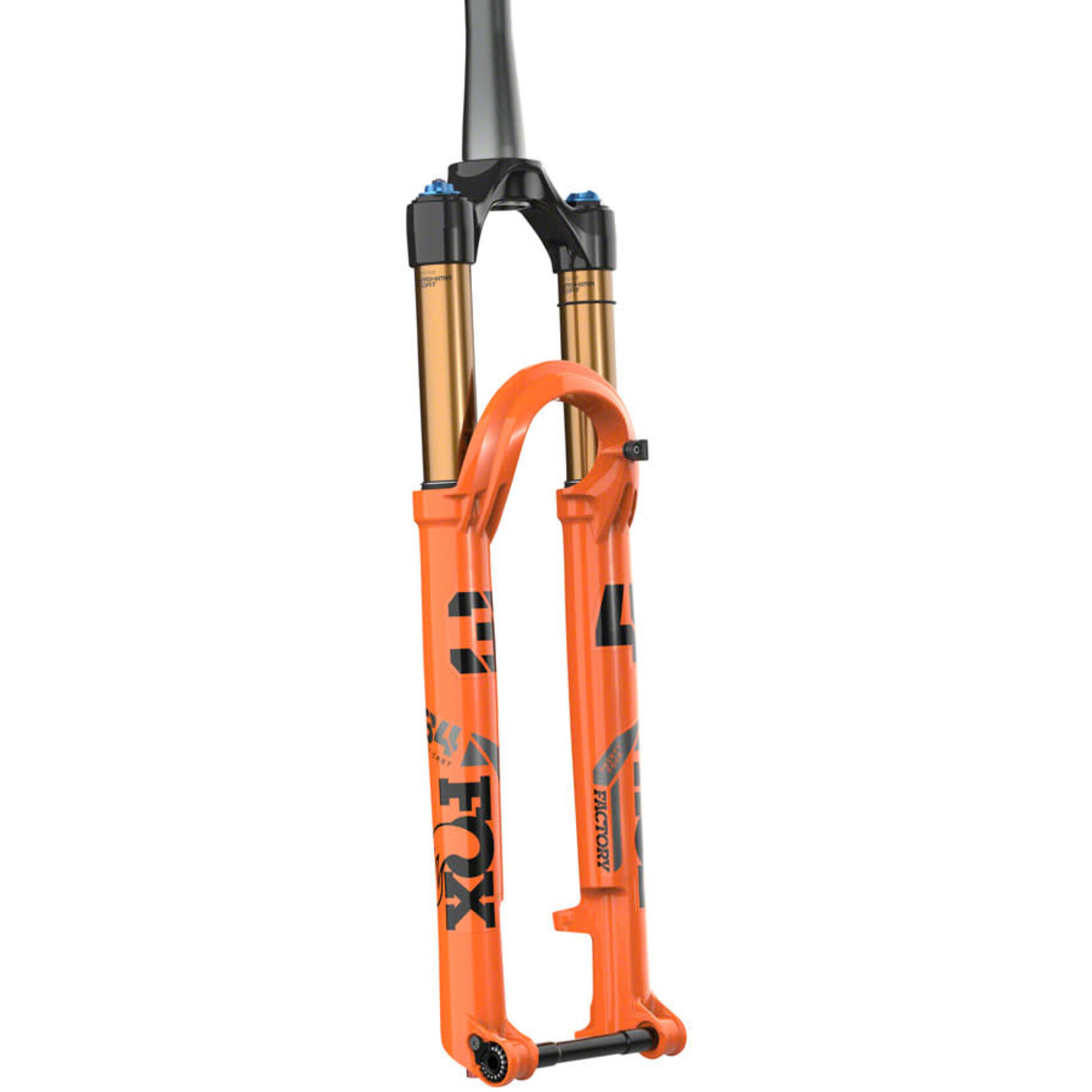

The 34 Step-Cast Factory is the choice for riders who want an all-round fork that performs in a vast range of applications: lightweight for climbs and highly capable for demanding terrain with enough travel to instill confidence when the trail gets rough. Weight savings are attributed to external lower casting steps, hollow lower section, and shortened shaft lengths.

• Step-Cast chassis
• Genuine Kashima Coating on upper tubes
• FIT4 damper and FLOAT EVOL air spring
• Dedicated air spring and damper tune are specific for this travel range, with a lighter tune at mid and higher velocities
• Kabolt Thru Axle
• Positive Spring: Air
• Wheel Size: 29"
• Brake Type: Post Mount 160
• External Adjustments: High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping
• Crown Race: 40
• Negative Spring: Air
• Stanchion Diameter: 34
• Front Axle: 15mm Thru x 110mm
• Steerer Type: Tapered
• Offset: 44
• Maximum Tire Width: 66
• Steerer Tube Length (mm): 264
• Color: Orange
• S.H.I.S. Stem Clamp Diameter: 28.6
• Travel (mm): 100
• Axle to Crown Length: 512
• Lockout Switch: Handlebar - Cable
• Defined Color: Orange
•
