HIGHLIGHTS

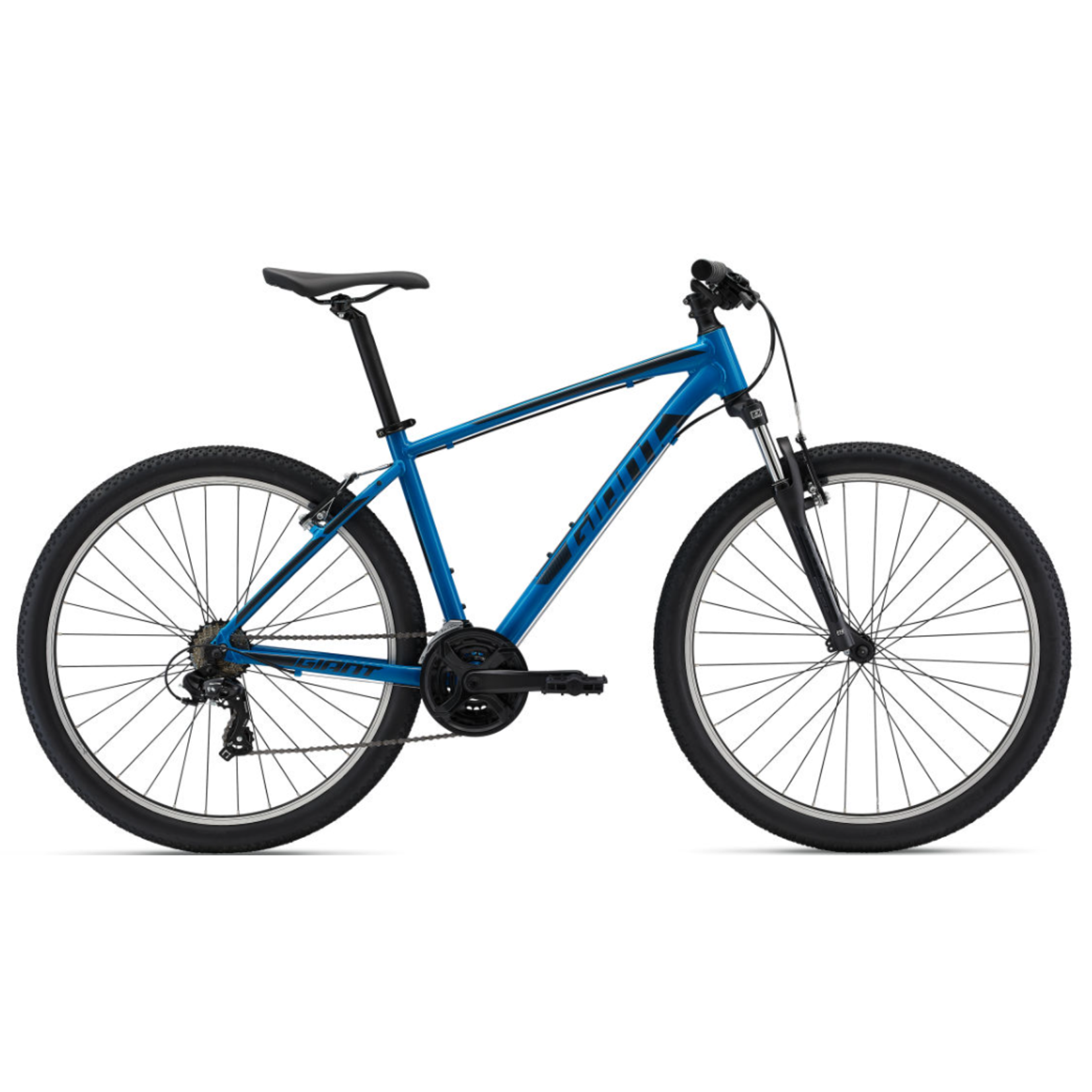

With a rugged personality and a smooth riding style, ATX features the familiar flat handlebar look of a traditional mountain bike. It has a lightweight, durable ALUXX aluminum frame and a suspension fork with 100mm of smooth travel to soak up bumps. The wheel diameter varies based on bike size, with 26-inch wheels on smaller frames and 27.5 on larger ones. This tailors the bike’s handling to a rider’s height. Powerful brakes deliver confident handling in all types of weather, and integrated mounts make it easy to add racks or fenders to suit your riding adventures.
| XXS (26") |
XS (26") |
S (27.5") |
M (27.5") |
L (27.5") |
XL (27.5") |
| A |
SEAT TUBE LENGTH (inch) |
13.8 |
15.2 |
16.5 |
17.9 |
19.9 |
21.1 |
| B |
SEAT TUBE ANGLE |
73.5° |
73.5° |
73.5° |
73.0° |
73.0° |
73.0° |
| C |
TOP TUBE LENGTH (inch) |
21.9 |
22.2 |
22.6 |
23.2 |
24 |
24.8 |
| D |
HEAD TUBE LENGTH (inch) |
3.7 |
4.1 |
3.7 |
4.3 |
5.7 |
6.7 |
| E |
HEAD TUBE ANGLE |
68.0° |
68.0° |
68.0° |
68.0° |
68.0° |
68.0° |
| F |
FORK RAKE (inch) |
1.7 |
1.7 |
1.7 |
1.7 |
1.7 |
1.7 |
| G |
TRAIL (inch) |
3.6 |
3.6 |
3.6 |
3.6 |
3.6 |
3.6 |
| H |
WHEELBASE (inch) |
41.9 |
42.4 |
42.5 |
43 |
43.9 |
44.7 |
| I |
CHAIN STAY LENGTH (inch) |
16.5 |
16.5 |
17.1 |
17.1 |
17.1 |
17.1 |
| J |
BOTTOM BRACKET DROP (inch) |
1.4 |
1.4 |
2 |
2 |
2 |
2 |
| K |
STACK (inch) |
21.9 |
22.2 |
22.9 |
23.4 |
24.7 |
25.6 |
| L |
REACH (inch) |
15.4 |
15.7 |
15.9 |
16.1 |
16.5 |
17 |
| M |
STAND OVER HEIGHT (inch) |
27.1 |
28 |
28.4 |
29.4 |
31.1 |
32 |
| N |
HANDLEBAR WIDTH (inch) |
24.4 |
26 |
26 |
26 |
27.6 |
27.6 |
| O |
STEM LENGTH (inch) |
2 |
2 |
2.8 |
2.8 |
3.5 |
3.5 |
| P |
CRANK LENGTH (inch) |
6.3 |
6.5 |
6.7 |
6.7 |
6.9 |
6.9 |
| Q |
WHEEL SIZE |
26" |
26" |
27.5" |
27.5" |
27.5" |
27.5" |
Specs
-
Sizes
26: XXS,XS,S, 27.5: S,M,L,XL, XXL
-
Colors
Black, Satin Black, Vibrant Blue
-
Frame
ALUXX-Grade Aluminum
-
Fork
SR Suntour XCE 28, coil, preload XXS: 80mm travel (26) XS: 80mm travel (26) S: 80mm travel (26) / 80mm travel (27.5) M: 80mm travel (27.5) L: 80mm travel (27.5) XL: 80mm travel (27.5) XXL: 80mm travel (27.5)
-
Shock
N/A
-
Handlebar
Giant Sport, alloy, 25.4mm XXS: 600mm (26) XS: 600mm (26) S: 640mm (26) / 640mm (27.5) M: 680mm (27.5) L: 680mm (27.5) XL: 680mm (27.5) XXL: 680mm (27.5)
-
Grips
Giant Sole-O
-
Stem
Giant Sport, alloy, 15-degree XXS: 60mm (26) XS: 60mm (26) S: 75mm (26) / 60mm (27.5) M: 60mm (27.5) L: 75mm (27.5) XL: 75mm (27.5) XXL: 75mm (27.5)
-
Seatpost
Giant Sport, 30.9mm XXS: 300mm (26) XS: 300mm (26) S: 300mm (26) / 375mm (27.5) M: 375mm (27.5) L: 375mm (27.5) XL: 375mm (27.5) XXL: 375mm (27.5)
-
Saddle
Giant custom
-
Pedals
platform
-
Shifters
MicoShift, Trigger, 3x7
-
Front Derailleur
Shimano Tourney
-
Rear Derailleur
MicoShift 26c, 7spd
-
Brakes
MTB linear pull
-
Brake Levers
Tektro 3 finger, Linear pull
-
Cassette
Shunfeng Freewheel, 14x28
-
Chain
KMC Z7
-
Crankset
ProWheel forged, 24/34/42 XXS: 165mm (26) XS: 165mm (26) S: 170mm (26) / 170mm (27.5) M: 170mm (27.5) L: 175mm (27.5) XL: 175mm (27.5) XXL: 175mm (27.5)
-
Bottom Bracket
cartridge
-
Rims
Giant alloy
-
Hubs
alloy, sealed bearing
-
Spokes
stainless, 14g
-
Tires
Giant Quickcross, 27.5x2.1" / 26x2.1"
-
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
